visualisation of streamlines flowing around and through different models

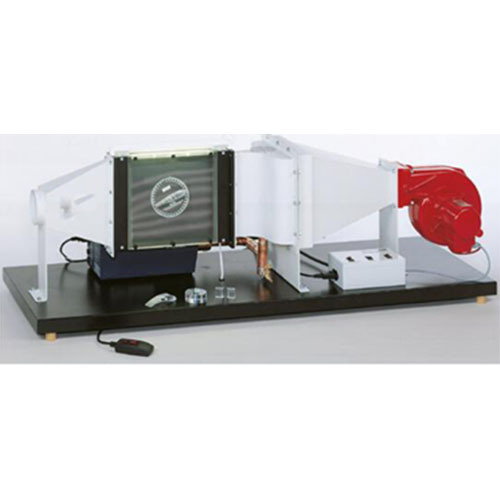

open wind tunnel with radial fan and a fog generator operation with non-toxic and water-soluble fog fluid
illuminated experimental section with sight window and black background
low-turbulence flow through stabilisation chamber with flow straightener distributor with nozzles for injecting the fog
four different models, angle of attack at aerofoil and guide vane profile adjustable scale for displaying the angle of attack

Experimental section
- transparent area: 252x252mm
- cross-section: 252x42mm
- aerofoil pivotable by 360°
Models
- cylinder: diameter: 60mm, height: 24,5mm
- aerofoil: 15X24,5x100mm
- guide vane profile: 20x24,5x100mm
- orifice plate: 2x 25x24,5x10mm
  orifice opening: 10mm
Radial fan
- max. volumetric air flow rate: 480m³/h
- max. pressure difference: 300Pa
Fog generator
- power consumption: 700W
LxWxH: 1400x500x490mm
Weight: approx. 50kg
230V, 50/60Hz, 1 phase
