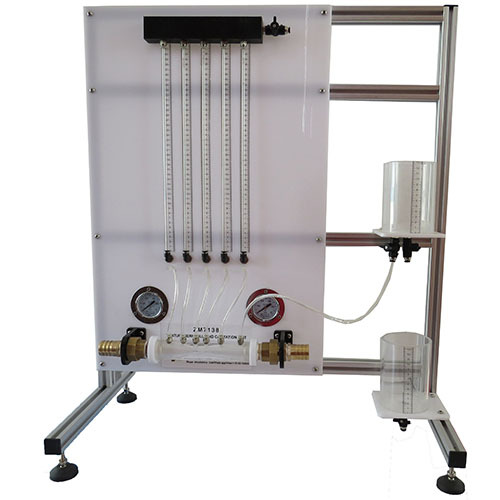

ZM7138 Venturi Bernoulli and Cavitation Unit Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment1.Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.
Diagram in the front panel with similar distribution to the elements in the real unit.
Quick connections for adaptation to feed hydraulics source.
2.Technical Data:
Manometer (Bourdon type), range: 0-2.5 bar.
Manometer (Bourdon type), range: 0-(-1) bar.
2 Tanks, height: 135 mm and internal diameter: 64 mm.
Venturi tube with 6 tappings (Divergent/Convergent).
Differential manometers: 0-500 mm.
5 Manometric tubes.
Easy and quick coupling system built-in.
Anodized aluminum structure and panel in painted steel.
Dimensions: 750 x 400 x 850 mm. approx.
Weight: 10 Kg. approx.
