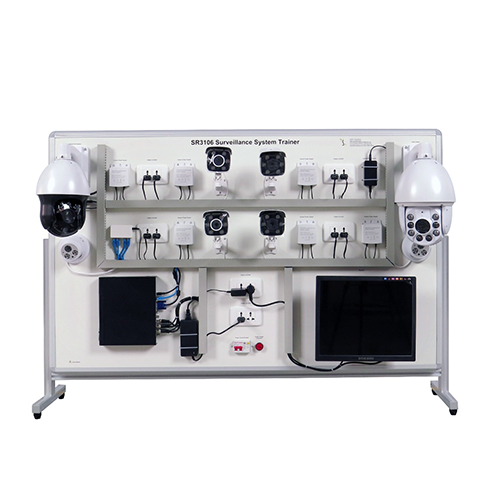

SR3106 Surveillance System Trainer Building Automation Wire Trainer Teaching Equipment Vocational Training EquipmentI.Product Overview
1.1 Overview
The SR3106 monitoring system training platform device can help students become familiar with and master the principles and control methods of the monitoring system through relevant experiments, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skill training assessment of relevant majors in higher vocational colleges, technical colleges, secondary vocational schools and technical schools.
1.2 Features
1. The product has excellent electrical safety performance, excellent protection design and grounding reliability.
2. The product design is beautiful and simple in structure.
3. The product adopts anti-corrosion measures and solid materials, which are strong and durable, greatly extending the service life of the product.
4. The product supports digitalization and can achieve remote monitoring and control through software or APP.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: single-phase three-wire AC220V.
Working environment conditions: ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).
2.2 Dimensions and Weight
Dimensions: 1565mm*400mm*1070mm
Weight :about 50kg
III.Components List and Detailed Introduction
3.1 Product Main Part
|
Number
|
Name
|
Quantity
|
|
1
|
Network smart dome camera
|
1
|
|
2
|
Camera power adapter
|
8
|
|
3
|
Two-way socket
|
5
|
|
4
|
Analog gun camera
|
2
|
|
5
|
Network gun camera
|
2
|
|
6
|
Simulated Smart Dome Camera
|
1
|
|
7
|
Coaxial dome camera
|
2
|
|
8
|
Display screen
|
1
|
|
9
|
Switch
|
1
|
|
10
|
Video recorder
|
1
|
|
11
|
Circuit breaker
|
1
|
|
12
|
Power indicator
|
1
|
|
Number
|
Name
|
Quantity
|
|
1
|
Video Recorder Mouse
|
1
|
IV. Experiment List
Experiment 1 Monitoring system localization settings and management tutorial
Experiment 2 Monitoring system PC APP remote monitoring
Experiment 3 Monitoring system mobile APP remote monitoring
