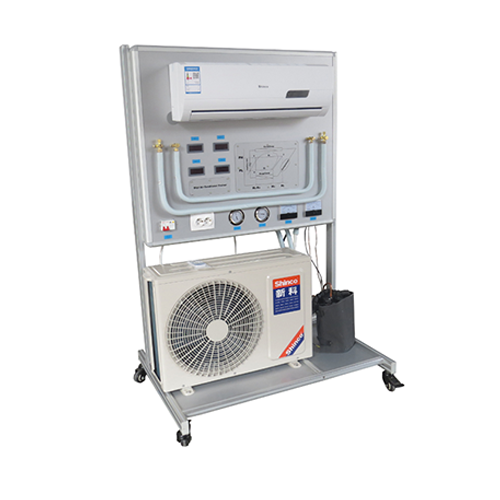

SS6105C Single Split Type Cooling/Heating Air Conditioner Training System Teaching Equipment Refrigeration Trainer Didactic Equipment
I.Product Overview
The operation of the system is based on a real split air conditioner, including an indoor unit and an outdoor unit.
The installation is on the same bracket, which will help the students to further understand the indoor and outdoor conditions of each unit to cooperate with each other to understand the refrigerant path in its cycle. The practical training device is used to study the study and operation of a home air conditioner and its thermodynamic characteristics.
I.Equipent feature
2.1 training platform adopts aluminum structure, the structure is simple and firm, in reducing the overall weight at the same time to ensure that the equipment's overall strength, installed at the bottom of the have four wheels, can be convenient to move.
2.2 four valves are installed on the front panel, allowing students to easily install the connecting piping (gas pipe and liquid pipe) between the indoor and outdoor Spaces.
2.3 provide the voltmeter and ammeter on the front panel to monitor the real-time system power supply.
2.4 provide high and low pressure pressure gauges on the front panel to monitor the inlet and outlet pressure of the compressor.
2.5 students can use the built-in instrumentation to record the experimental data, further draw the humidity chart and Mollier diagram to understand the performance of the air conditioner.
2.6 the equipment has a good safety protection system.
III.Technical date
|
dimension
|
1150mm*800mm*1680mm
|
|
type
|
Changes in temperature electric auxiliary
|
|
frequency
|
fixed frequency
|
|
refrigerating capacity
|
2600W
|
|
Refrigerating power
|
788W
|
|
Heating capacity
|
2860W
|
|
Heating power
|
822W
|
|
Electric heating power
|
800W
|
|
Cycle wind capacity
|
540m3/h
|
|
Indoor Noise dB
|
25-38dB
|
|
outdoor Noise dB
|
51dB
|
|
Energy Efficiency Rate
|
3 class
|
|
SEER
|
3.3
|
|
refrigerating fluid
|
R22
|
|
Power capacity
|
220V/50Hz
|
IV. Equipment composition
4.1 the high voltage end of TE compressor; TO compressor low pressure end; The end of TC condenser; TS evaporator inlet; TD evaporator out end.
4.2 indoor and outdoor terminals.4.3 the enthalpy diagram is clearly printed on the front panel for quick reference.
4.4 high and low pressure gauges to monitor the inlet and outlet pressure of the compressor.
4.5 AC voltmeter; AC ammeter, monitor real-time system power supply.
4.6Outdoor machine
4.7Inddor machine
