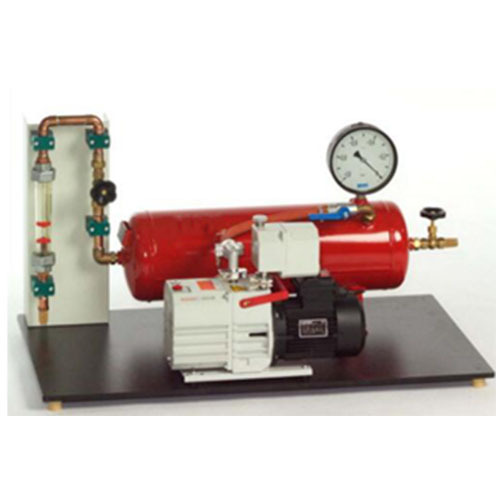

ZM7143 Rotary Vane Vacuum Pump Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipmentvacuum generation with a rotary vane pump
vacuum generation in a steel pressure vessel
oil separator with tank on the delivery side of the rotary vane pump
manometer to display the pressure in the vessel
1 inlet line with needle valve, 1 inlet line with needle valve and flow meter on the pressure vessel for simulation loads and leaks
2 silencers to reduce flow noise
Technical Data
Rotary vane pump
- max. flow rate: 5m³/h
- final vacuum: 0,02mbar
- motor power output: 370W
Volume of pressure vessel: 20L
Oil separator
- degree of separation: 99,98%
- capacity of tank: 150mL
Measuring ranges
- pressure: -1...0bar (resolution: 0,02bar)
- flow rate: 0,4...4Nm³/h
Dimension and Weight
LxWxH: 1000x550x580mm
Weight: approx. 60kg
