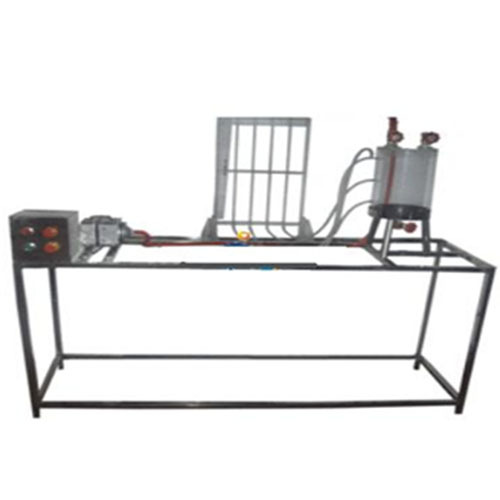

ZM7111 Properties Of Fluids and Hydrostatics Bench Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment
The hydrostatic pressure in two properties
(1) perpendicular to the direction of hydrostatic pressure and point receiving surface (Vertical point to acted surface.)
(2) at any point along a stationary liquid hydrostatic pressure magnitude in each direction are equal (The pressures from every direction are equal in size.)
1.Purpose:
1, suitable for engineering fluid mechanics teaching experiment.
2, three different locations by measuring hydrostatic pressure, hydrostatic verify incompressible fluid mechanics equations.
3, measuring an unknown liquid density, consolidate absolute pressure, relative pressure, the concept of vacuum.
4, learn to use liquid column manometer.

Main configuration:
Pressure tube, test vessel, pressure pump, valve, gauge, stainless steel gantry.
2.Technical parameters:
1. Operating environment: temperature 0-400C, relative humidity: ≤90% RH, power supply: 220V / 50Hz, continuous operation.
2, pressure tube: ф8 × 600mm, 6 roots.
3, experimental container: ф200 × 300mm, made of plexiglass, the container has: air inlet, the inlet, the discharge port.
4, pump power: 35W, rated power: 220V / 50HZ, maximum pressure: 0.03Mpa, maximum displacement: 40L / min.
5, the fluid used in the experiments - for the whole water cycle design.
6, other piping, valves, overall frame: stainless steel.
7, Dimension: 1000 × 450 × 1500mm.
