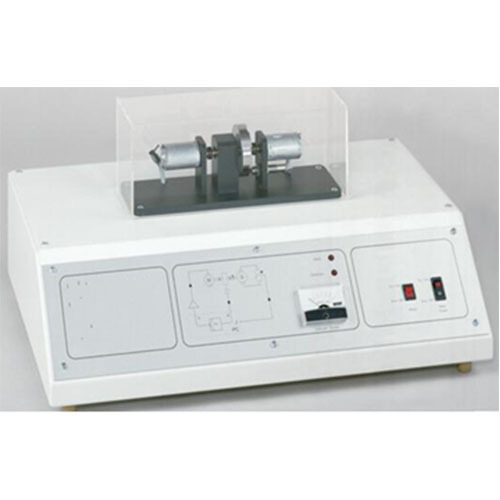

ZM7150 Pressure Control Training System Fluids Engineering Training Equipment Teaching Equipment Didactic Equipmentexperimental unit for control engineering experiments
pressure control in a tank
speed controlled diaphragm gas pump
electronic pressure sensor
solenoid valve to generate disturbance variables
process schematic on front panel
Technical Data
Diaphragm gas pump
- max. flow rate: 3L/min
- max. positive pressure: 1bar
- max. negative pressure: 250mbar abs.
Pressure tank
- capacity: 400mL
- operating pressure: 1bar
- max. pressure: 10bar
Pressure control range: 0...1bar
Solenoid valve: Kvs: 0,11m³/h
Pressure transducer: 0...1bar
Manometer: 0...1bar
- process schematic with controller type selection
(manual, continuous controller, two- or three-point
controller, programmer)
- time functions
- simulation function
- disturbance variable input
Dimensions and Weight
LxWxH: 600x450x340mm
Weight: approx. 18kg
