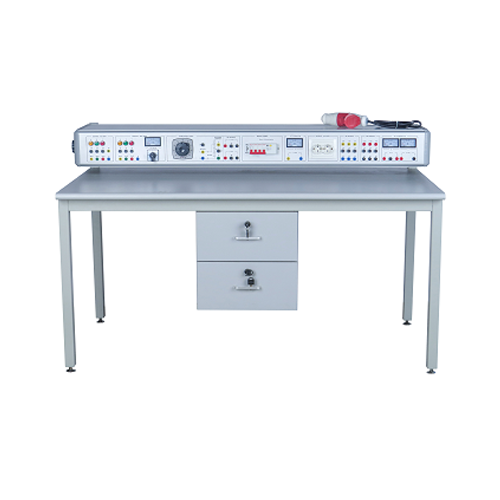

TB-20230203R-001 Power Bench Vocational Trainer Workbench School Educational Equipment Electrical Training Equipment1. Equipment introduction
1.1 Overview
The training equipment is mainly based on the current "Electrical Engineering", "Electrical Engineering", "Electronic Technology" syllabus and experimental requirements, combined with the characteristics of various experimental instruments at home and abroad and designed products, providing a variety of DC power and AC power. Cultivate students' corresponding knowledge and skills, suitable for teaching and skill training assessment in higher vocational schools, higher vocational schools, secondary vocational schools and technical schools.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure, and the training power supply is built-in and integrated, which is easy to use and not easy to damage.
2. Performance parameters
(1) Input power: three-phase five-wire system 380V±10% 50Hz
(2) Weight: <100kg
(3) Working conditions: ambient temperature -10℃～+40℃ relative humidity <85% (25℃)
(4) Dimensions: 2000mm×1000mm×750mm
(5) Machine capacity: <4KVA
3. Component list and detailed introduction
3.1 Power box
|
No
|
Name
|
|
1
|
Three-phase auto voltage regulator
|
|
2
|
380V power supply
|
|
3
|
0-500Vpower supply
|
|
4
|
line voltmeter
|
|
5
|
Single phase 0-300V
|
|
6
|
AC220V
|
|
7
|
Single phase0-300V
|
|
8
|
DC0-220V/0-300V
|
|
9
|
4p circuit breaker
|
|
10
|
AC500V Voltmeter
|
|
11
|
European socket
|
|
12
|
AC24/AC12/AC6V
|
|
13
|
DC24V/DC12V/DC6V
|
|
14
|
DC voltage ammeter
|
3.3 Equipment configuration list:
|
No
|
Name
|
Qty
|
|
component 1
|
power box
|
1
|
|
component 2
|
frame
|
1
|
4. Experiment list
Experiment 1 Three-phase 380V output experiment
Experiment 2 Three-phase 0-500V output experiment
Experiment 3 Single-phase output experiment
