SR6117 PLC Training Box School Training Bench School Laboratory Equipment Educational Electrical Training Equipment
product description
1 Performance parameters
(1) Input power: single-phase three-wire system 220V±10% 50Hz
(2) Dimensions: 297mm×310mm×80mm
(3) The capacity of the whole machine: <100VA
(4) Weight: <100kg
(5) Working conditions: ambient temperature -10℃～+40℃ relative humidity ＜85% (25℃)
2 System introduction
This training device includes Siemens 300 PLC, training simulation module and other control objects. Through related experiments, you can be familiar with the basic use and programming methods of S7-300 PLC, the use of programming software, etc. Cultivate students' corresponding knowledge and skills, suitable for teaching and skill training assessment of related majors.
(1) Adopt standard modular unit hanging box, PLC embedded installation.
(2) All the input and output terminals of the PLC module are led out to the panel through the transfer terminal, and the K2 test line is used for connection.

(3) The PLC module uses Siemens SIMATIC S7-300, CPU 314C-2PN/DP compact CPU, with 192 KB work memory, 24 DI/16 DO, 4 AI, 2 AO, 1 Pt100, 4 high-speed Counter (60 kHz), first interface MPI/DP 12 Mbit/s, second interface Ethernet PROFINET, with 2-port switch, Integr. Power supply 24 V DC, requires front connector (2x 40 pins) and micro storage card
(4) PLC input terminal can simulate digital input state through switch operation.
(5) LED lights indicate input and output status.

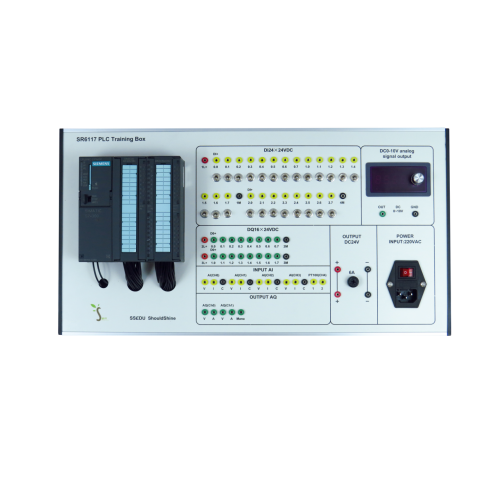

3 Product composition
①: Siemens plc-300cpu
②: plc digital signal input
③: DC0-10V analog signal output
④: PLC digital signal output
⑤: 24V output
⑥: AC220V power input
⑦: plc analog signal input
⑧: PLC analog signal output
