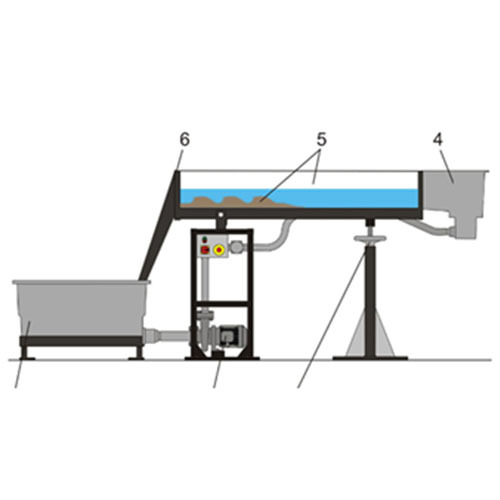

ZM7122 Open Channel Sediment Transport Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment1.Experimental section
- length: approx. 1.600mm
- flow cross-section WxH: 300x86mm
- inclination adjustment: -1...+3%
Tank: approx. 280L
Pump
- power consumption: approx. 1,0kW
- max. flow rate: 22,5m³/h
- max. head: 13,7m
Sediment trap filter element: 49mesh
Dimensions
Weight: approx. 215kg
2.Related experiment
observation of
* starting conditions for bed-load transport
* how flow velocity affects bed-load transport
* ripple and dune formation on the river bed
* fluvial obstacle mark of bridge piers (scour formation and siltation)
* secondary flows in channel bends
additionally with fine sand
- observation of solid matter flows
- how sediment size and density affect sediment
Transport
