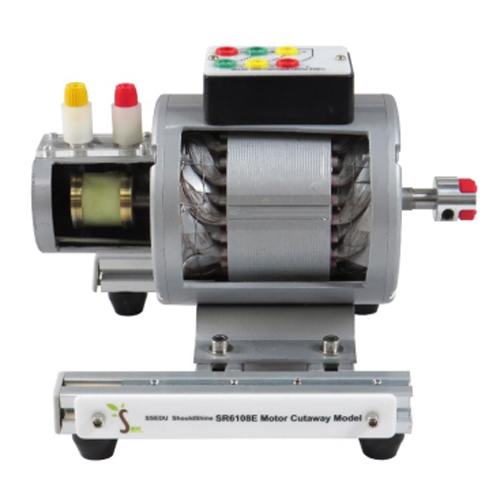

SR6108E Motor Cutway Model School Training Bench Vocational Trainer Workbench Electrical Training Equipment1. Product Introduction
1.1 Product Description
The Motor Cutway Model is essentially a three-phase synchronous motor. It is a common AC induction motor widely used in industrial applications requiring constant speed operation and high-precision control, such as machining, textiles, and chemicals. Its simple structure, reliable operation, and convenient maintenance make it an important power source in industrial production.
1.2 Product Features
1. The product boasts excellent electrical safety performance, employing superior protective design and reliable grounding.
2. The product features an aesthetically pleasing design and a simple structure.
3. The product utilizes corrosion-resistant, robust materials, ensuring durability and significantly extending its service life.
2. Technical Specifications
2.1 Technical Parameters
Nominal voltage: Three-phase five-wire AC380V~50Hz; Operating environment requirements: Ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).
2.2 Dimension and Weight
Dimension: 280mm×240mm×250mm
Weight:＜20kg
3. Product Component Names and Functions
3.1 Main Body of the Product
No. Name Quantity
1 Excitation winding 1
2 Junction box 1
3 Coupling 1
4 Rotor 1
3.2 Product Accessories
No. Name Quantity
1 Yellow 4mm electrical safety connection cable 2
2 Green 4mm electrical safety connection cable 2
3 Black 4mm electrical safety connection cable 1
4 Red 4mm electrical safety connection cable 3
4. Product Teaching Experiment List (See Experiment Manual for details)
(1) Teaching of star-delta connection
