TB-230313-V-3.1 Mobile Didactic Bench For Studying Photovoltaic Systems Didactic Equipment Vocational Education Equipment Renewable Training Equipment

1 Equipment introduction
1.1 Overview

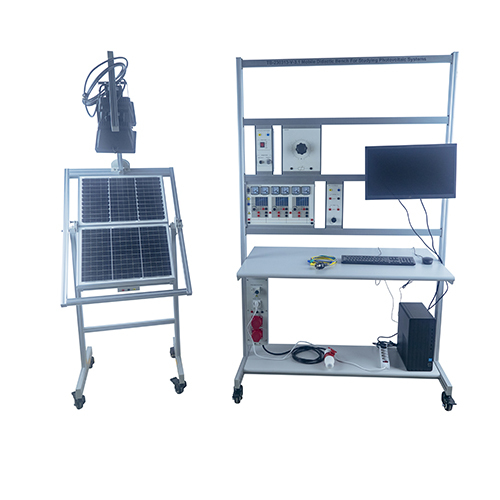

A mobile teaching platform for studying photovoltaic systems, including an aluminum frame. The aluminum frame is provided with a lighting control module, a load module, a solar panel control module, and a signal output module from top to bottom. The signal input module The bottom of the output module is equipped with a USB port for connecting to a computer with all the software required to debug the device.
A solar simulated light source module and a solar photovoltaic panel are provided on one side of the aluminum frame. The solar photovoltaic panel is located directly below the solar simulated light source and is located on the same horizontal plane.
The bottom of the aluminum frame is also equipped with a power box module, and various modules cooperate with each other to complete the teaching objectives of this product.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure, which is simple and elegant as a whole. It is equipped with universal wheels at the bottom and can be flexibly moved.
(2) The combination of software and hardware can complete training content in a variety of subjects.
(3) The training platform has a good safety protection system.
2 Technical parameters
Input power: single line three-phase 220V, 50Hz
Size: 1250mmx700mmx1995mm
weight: <133kg
Ambient temperature: -10℃～+40℃
Relative humidity: <85% (25℃)

3 Components list and detailed introduction
3.1 Main part

3.2 Accessories

4 Experiment list
Experiment 1 Solar panel open circuit voltage test experiment
Experiment 2 Solar panel short circuit current test experiment
Experiment 3 Solar panel maximum power point test experiment
Experiment 4 Solar panel conversion efficiency measurement experiment
Experiment 5 Solar Panel Durability Test Experiment
Experiment 6 Solar panel I-V or P-V characteristics test experiment
Experiment 7 Dark volt-ampere characteristic test experiment of solar panels
Experiment 8 Series open circuit voltage test experiment of solar panels
Experiment 9 Series short-circuit current test experiment of solar panels
Experiment 10 Parallel open circuit voltage test experiment of solar panels
Experiment 11 Parallel short circuit circuit test experiment of solar panels
Experiment 12 Solar panel load characteristics test experiment
Experiment 13 Software Testing Experiment
