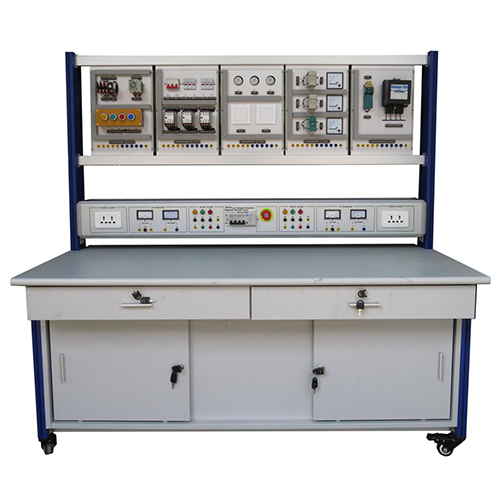

ZE3303 Low Voltage Technician Operation Security Trainer Didactic Equipment School Equipment Training Electrical Training Equipment1 Product overview
1-1 Overview
1. This product is a comprehensive electrician operating platform covering electrical subject test, electrical equipment, electrician security, electrician operation, etc.
2, this product can also carry out electrical installation, wiring technology, circuit analysis, mechanical training, as well as electronic control circuit experiments, fault analysis.
1-2 Features
1. The countertop of this product is made of high-density fireproof board, and the bottom of the countertop is provided with a movable lockable wheel for easy movement.
2. This product provides two sets of power supply units, which can train two students at the same time.
3. The power supply, instrument and instrument used in this product are reliable and have a personal safety protection system.
2 Performance parameters
(1) Input power: three-phase five-wire system 380V±10% 60Hz
(2) Dimensions: 1600mm × 800mm × 1600mm
(3) Machine capacity: <2KVA
(4) Weight: <250kg
(5) Working conditions: ambient temperature -10 ° C ~ +40 ° C Relative humidity <85% (25 ° C)
3 Experiment list
1, the motor runs continuously in one direction (with jog control)
2. Positive and negative rotation of three-phase asynchronous motor
3, single-phase electric energy meter, with lighting control
Motor operation control circuit (with fuse, circuit breaker, electric meter, current transformer)
