Name: Industrial Safety Training Unit Building Automation Wire Trainer Didactic Equipment Vocational Training Equipment
Brand: SSEDU Vocational Training Equipment
SKU: SR3109
Availability: InStock
Rating: 5 (1 reviews)

Description

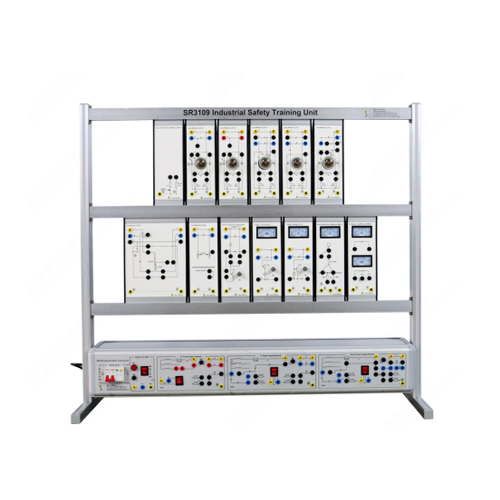

SR3109 Industrial Safety Training Unit Building Automation Wire Trainer Didactic Equipment Vocational Training Equipment
1. Product Introduction
1.1 Product Description
This system can simulate the process of industrial safety power system, so that students can have a preliminary intuitive understanding of industrial safety power, and cultivate students' corresponding knowledge and skills.
1.2 Product Features
(1) The training platform adopts an aluminum profile frame structure, the measuring instrument and load module are installed in a hanging box, and the training power supply is built-in and integrated. Each unit is flexible to cooperate, easy to use, and not easy to damage.
(2) The experimental circuit and device configuration are complete and can be used in combination to complete the training content of various subjects.
(3) The training platform has a good safety protection system.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: single-phase three-wire 220V/50hz
2.2 Dimensions and weight
Dimensions: 1230mm×475mm×1355mm
Weight: 63kg

3. Product component name and function introduction
3.1 Product main part

No.	Name
1	Power box
2	Module
3	Frame

3.2 Product electrical part

No.	Name
1	2P circuit breaker
2	Power indicator light
3	Power output port
4	Power switch
5	IT power supply network
6	TT power supply network
7	TN-C-S power supply network

3.3 Product Module Introduction

No.	Name
1	Ground resistance module
2	Load module
3	Transformer module LD-1-5
4	Load module LD-6
5	Pulsating DC module
6	Leakage current module
7	Leakage voltage module
8	Human body test module
9	Voltage and current meter module

3.4 Product accessories

No.	Name
1	4mm safety electrical cable 1m double-ended yellow
2	4mm safety electrical cable 1m double-ended black
3	4mm safety electrical cable 1m double-ended red
4	4mm safety electrical cable 1m double-ended blue
5	4mm safety electrical cable 1m double-ended two-color
6	Digital multimeter UA9205
7	Fuse 5A 5*20
8	Fuse 0.3A 5*20
9	Incandescent bulb 24v 60w E27 screw-on

4. Product Configuration List

No.	Name	Qty
1	Ground resistance module	1
2	Load module LD-1-5	5
3	Transformer module	1
4	Load module LD-6	1
5	Pulsating DC module	1
6	Leakage current module	1
7	Leakage voltage module	1
8	Human body test module	1
9	Voltage and current meter module	1
10	4mm safety electrical cable 1 meter double-ended yellow	5
11	4mm safety electrical cable 1 meter double-ended black	10
12	4mm safety electrical cable 1 meter double-ended red	5
13	4mm safety electrical cable 1 meter double-ended blue	10
14	4mm safety electrical cable 1 meter double-ended two-color	5
15	Digital multimeter UA9205	1
16	Fuse 5A 5*20	5
17	Fuse 0.3A 5*20	5
18	Incandescent bulb 24v 60w E27 screw	1

5. Product teaching experiment list (see the experiment guide for details)
(1) Simulation of basic protection measures experiment
(2) Simulation of indirect contact electric shock experiment
(3) Simulation of protection measures in TN power supply network experiment
(4) Low voltage protection experiment
(5) Direct electric shock simulation experiment
(6) Simulation of direct electric shock protection experiment
(7) Measurement experiment of leakage voltage flowing through human body resistance
(8) Measurement experiment of leakage current flowing through human body resistance
(9) Measurement experiment of pulsating DC with AC component flowing through human body resistance
