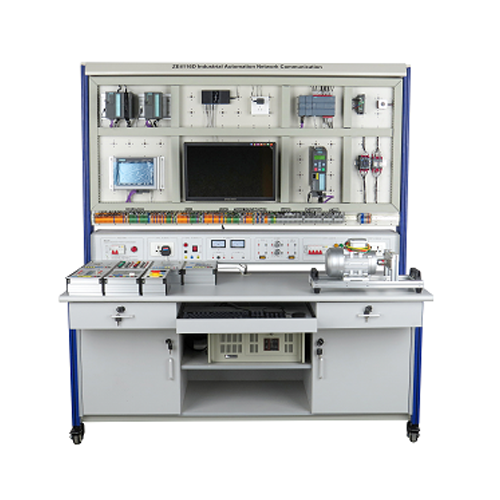

ZE4116D Industrial Automation Network Communication Trainer School Equipment Training Educational Workbench Electrical Training EquipmentI.Product Overview
Overview
Industrial automation network communication integrated training equipment is based on Siemens fully integrated automation training platform, which is suitable for universities, colleges, technical schools, and engineer training centers. It can not only conduct automated network education and training, but also has a slave system that can set up network training rooms and can be regarded as a teacher's machine.
The main body of the industrial automation network communication integration training equipment is the automation communication network, Siemens two S7-300PLC, Siemens S7-1200PLC, AC contactor, Siemens touch screen, stepping motor, Siemens G120 inverter, three-phase motor, industrial personal computer, Switches, UPS power supply, water tower control box, traffic light box, button light box, steel rolling equipment box, processing center box, elevator control box and other configurations. Realize the sharing of teaching resources and optimize the management of experimental teaching.
Industrial Automation Network Communication Integrated Training System
Based on Siemens' three-tier network structure:
The first layer: the main equipment is industrial PC. Enterprise management, two Siemens S7-300 PLCs,
The second layer: process monitoring layer, the main equipment is two Siemens S7-300 PLC, to communicate with the first layer through Profinet.
The third layer: scene control layer. The main equipment is Siemens S7-1200PLC, Siemens inverter, AC contactor, DC contactor, button indicator light module, etc. It communicates with the second layer and the third layer through PROFIBUS or Profinet protocol.
Features
(1) The training platform adopts an aluminum profile column frame structure, and the bottom of the training platform is equipped with universal wheels, which can be moved flexibly. Various modules are placed on the panel, which is easy to use and not easy to damage.
(2) There are a complete range of communication modules, which can be combined and used in various ways.
(3) The overall structure adopts an open and disassembled type, which can easily replace the modules. The content of the modules is determined according to the principle of having productive functions and integrated learning functions, so that the required modules can be conveniently selected during teaching or competition.
(4) The training and assessment device is a low-voltage component, which is safe to use.
II.Performance Parameter
(1) Input power: three-phase five-wire AC380V±10% 50Hz
(2) Dimensions: 1710 (length) x890 (width) x1980 (height) mm
(3) Machine capacity: <1.5 KVA
(4) Weight: <300kg
(5) Working conditions: Ambient temperature -10°C ~ +40°C Relative humidity <85% (25°C)
(6) Safety protection: with leakage voltage and leakage current protection devices, the safety meets national standards
III.Product Composition
Main part:
|
Number
|
Component name
|
|
1
|
Panel module
|
|
2
|
Terminal block
|
|
3
|
Encoder and three-phase motor
|
|
4
|
UPS power supply
|
|
5
|
Cupboard
|
|
6
|
Industrial PC
|
|
7
|
Hanging box part
|
|
8
|
Power box
|
Power box part
|
Number
|
Name
|
|
1
|
2P circuit breaker with leakage protection, indicator light
|
|
2
|
Six hole socket
|
|
3
|
AC220V single-phase AC output unit, indicator light, overload insurance
|
|
4
|
DC Ammeter, DC Voltmeter
|
|
5
|
4-20mA analog output, 0-10V analog output and DC24V power output.
|
|
6
|
AC380V three-phase AC output unit, three-phase indicator light, three-phase overload insurance
|
|
7
|
Six hole socket
|
Panel module
|
Number
|
Name
|
|
2
|
PLC module (CPU 312C)
|
|
3
|
Switch
|
|
4
|
PLC module (CPU 1214C+CM1242-5 PROF1BUS DP SLAVE+CM1241 RS422/485)
|
|
5
|
Stepper motor + stepper motor driver
|
|
6
|
Siemens touch screen
|
|
7
|
Monitor
|
|
8
|
Siemens G120 inverter module
|
|
9
|
AC220V AC contactor and DC24V intermediate relay
|
|
10
|
PLC module (CPU 314C-2PN/DP) transfer terminal
|
|
11
|
PLC module (CPU 312C) transfer terminal
|
|
12
|
PLC module (CPU 1214C) transfer terminal
|
|
13
|
Stepper motor unit transfer terminal
|
|
14
|
Touch screen power transfer terminal
|
|
15
|
Switch power transfer terminal
|
|
16
|
Siemens G120 inverter transfer terminal
|
|
17
|
AC220V AC contactor
|
|
18
|
DC24V intermediate relay transfer terminal
|
Component part:
|
Number
|
Name
|
|
Component 1
|
Water tower control hanging box
|
|
Component 2
|
Traffic light hanging box
|
|
Component 3
|
Button light hanging box
|
|
Component 4
|
Steel rolling device hanging box
|
|
Component 5
|
Machining center hanging box
|
|
Component 6
|
Elevator Control Hanging Box
|
|
Component 7
|
Voltmeter and emergency stop button hanging box
|
|
Component 8
|
Three-phase motor with encoder
|
|
Component 9
|
UPS power supply
|
|
Component 10
|
Industrial PC
|
|
Component 11
|
MPI download line
|
|
Component 12
|
Toolbox
|
|
Component 13
|
Multimeter
|
|
Component 14
|
Accessories
|
IV.Completable Training Content
Experiment 1 Siemens 300PLC and PC communication programming training
Experiment 2 Siemens 300PLC MPI communication training
Experiment 3 Siemens 300PLC and 1214CPLC Ethernet communication training
Experiment 4 300PLC control stepper motor training
Experiment 5 Siemens touch screen configuration software programming training
Experiment 6 Design the experimental project training of comprehensive training network and system
Experiment 7 Siemens inverter panel control training
Experiment 8 300PLC and inverter PROFIBUS DP communication training
Experiment 9 S7-1200 PLC programming and communication training training
Experiment 10 PC read and write remote PLC experiment
Experiment 11 300PLC and touch screen PROFIBUS serial communication experiment
Experiment 12 Automatic and manual control traffic lights experiment
Experiment 13 Controllable Experiment of Turning On and Off Time of Traffic Lights
Experiment 14 Automatic control experiment of rolling mill
Experiment 15 Automatic control experiment of elevator
Experiment 16 Tool changing experiment
Experiment 17 Fully automatic control experiment of machining center
Experiment 18 Water level control experiment of water tower
