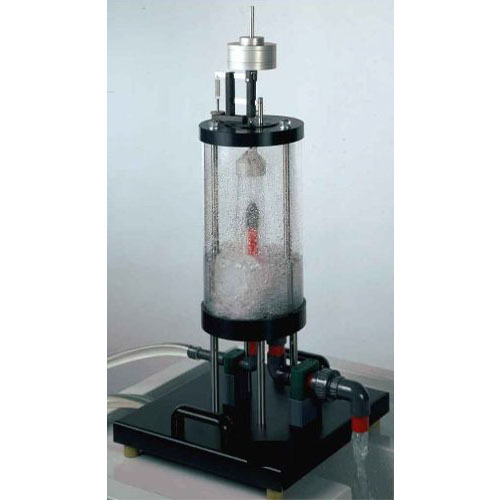

ZM8146 Impact of a Jet Demonstration Apparatus Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment1.Purpose
This equipment enables students to measure the force developed by a jet of water impinging upon a stationary object.
2.Ordering Specification
● Discharge nozzle inside clear acrylic cylinder
● Four different target plates which fit onto a balance mechanism
● Quick release fitting for easy connection to hydraulics bench
This equipment allows the force developed by a jet of water impinging upon a stationary object to be measured.
3.Measurement Capabilities
Measuring the force exerted on different targets and comparison with the forces predicted by momentum theory
4.Technical Detail
Nozzle diameter: 8mm
Distance between nozzle & target plate: 20mm
Diameter of target plate: 36mm
Target plates:
– 1800 hemispherical target
– 1200 target (cone)
– flat target
– 300 target
