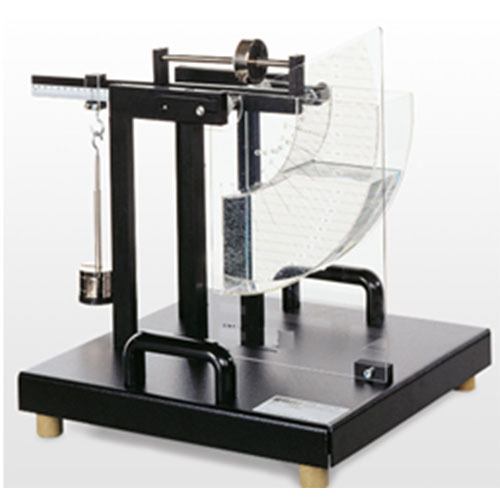

ZM7158 Hydrostatic Pressure In Liquids Fluids Engineering Training Equipment Teaching Equipment Didactic EquipmentFor the investigation of the hydrostatic pressure in fluids at rest
tiltable water tank with fill level scale
lever arm with different weights
Technical Data
Water tank
- inclination angle: 0°...90°
- content: 0...1,8L
- scale: 0...250mm
- effective area, max. 75x100mm
Lever arm
- max. length 250mm
Weights
- 1x 2,5N
- 1x 2N
- 2x 1N
- 1x 0,5N
Dimension and weight
LxWxH: 400x500x450 mm
Weight: approx. 12kg
