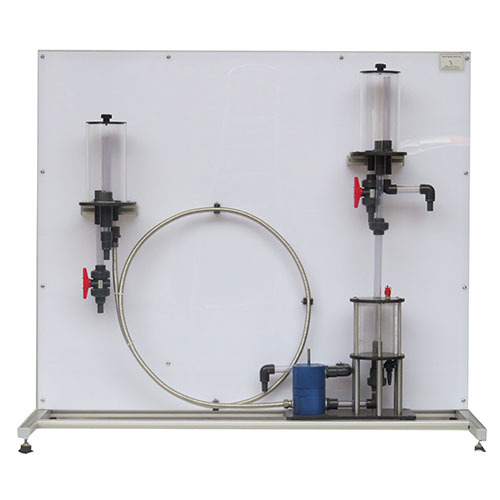

ZM8154 Hydraulic Ram Pump Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment1.Purpose
It helps students to demonstrate how to use water hammer to pump water in the hydraulic ram.
2.Ordering Specification
Pump body manufactured from clear acrylic with stainless steel pulse and non-return valves
Adjustable acrylic header tank with inlet and outlet hoses
Outlet hose with variable head arrangement
Quick release fitting for easy connection to hydraulics bench
Supplied with weights to load pulse valve
The flowing water is suddenly brought to rest in a long pipe, a phenomena known as water hammer occurs, wherein a pressure wave travels along the pipe. This principle is used in the hydraulic ram to pump water.
3.Demonstration Capabilities
Establishing flow/pressure characteristics and determining efficiency of the hydraulic ram.
4.Technical Detail
Supply head: 300 - 700mm variable
Delivery head: 750 - 1500mm variable
