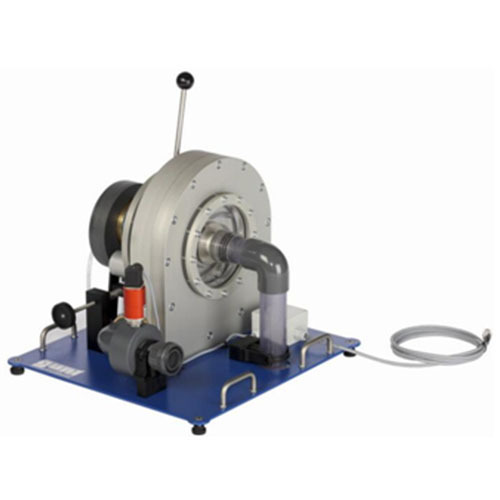

ZM7144 Francis Turbine Fluids Engineering Training Equipment Teaching Equipment Didactic Equipmentrecording the curves of a Francis turbine and investigating the influence of the guide vane position
transparent front panel for observing the operating area
loading the turbine by use of the band brake
adjustable guide vanes for setting different angles of attack
recording the torque via band brake and force sensor
force sensor at the turbine inlet
speed, torque and pressure displayed on the switch cabinet of Characteristic Variables of Hydraulic Turbomachines
Technical Data
Turbine
- output: approx. 350W at 1500min-1, 270L/min,
H=15m
- max. speed: 3000min-1
- rotor
11 vanes
medium diameter: 60mm
- control wheel
7 vanes
angle of attack: 0...20°
Measuring ranges
- torque: 0...9,81Nm
- pressure: 0...4bar abs.
- speed: 0...3000min-1
Dimensions and Weight
LxWxH: 510x490x410mm
Weight: approx. 38kg
