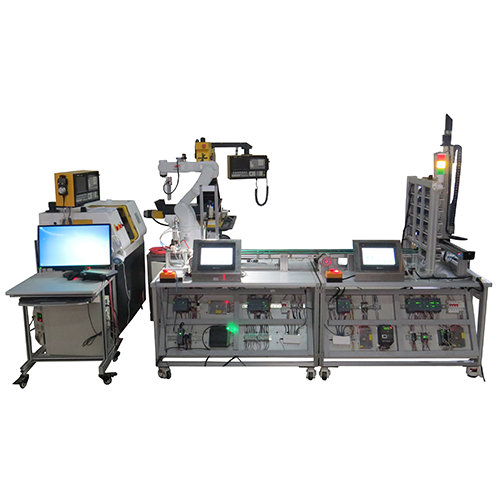

FMS1602 FMS Mechatronics Training System Mechatronics Training Equipment Teaching Equipment Vocational Training Equipmenta.FMS complete system 1 set
contain
A-storage station
B-mechanical maintenance station
C-assembly and quality control station
D-PLC station
E-tray tracking station
F-management station
Storage station
Cartesian robot
36 storage units
PLC control station
Aluminum profile frame
(1) Function: A 36-dimensional three-dimensional warehouse is used to store processing raw materials, and transport raw materials to the processing location according to the requirements of processing instructions.
(2) Composition: It is mainly composed of aluminum alloy profile base, rectangular coordinate robot, three-dimensional three-dimensional shelf, and electrical control unit.
Mechanical maintenance station
CNC Machine Center
X axis travel at least 200mm
Y-axis travel of at least 90mm
Z axis travel at least 150mm
Tool center range up to 12mm
Spindle motor 0.7W
Spindle speed: 300-2000
