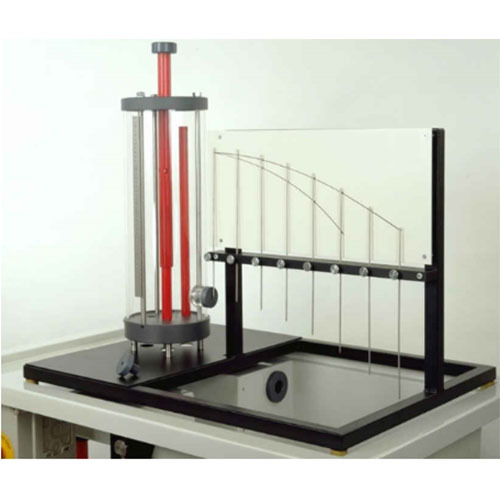

ZM8129 Flow Through Orifices Fluids Engineering Training Equipment Teaching Equipment Didactic EquipmentMain guided experiment that can be performed
1.determination of contraction coefficient
2.Determinnation of speed coefficient
3.Calculation of discharge cofeeicient
4.Measurement of actual discharge coefficient
5.Demonstration of influence of reynolds number
This unit must allow a comprehennsive analysis of flow through an orifice over a range of flow rates. The unit must include a glass tank with an orifice located at the base.
