ZM7142 Experiments with a Centrifugal Pump Fluids Engineering Training Equipment Teaching Equipment Didactic Equipmentfunctioning and operating behaviour of a centrifugal pump

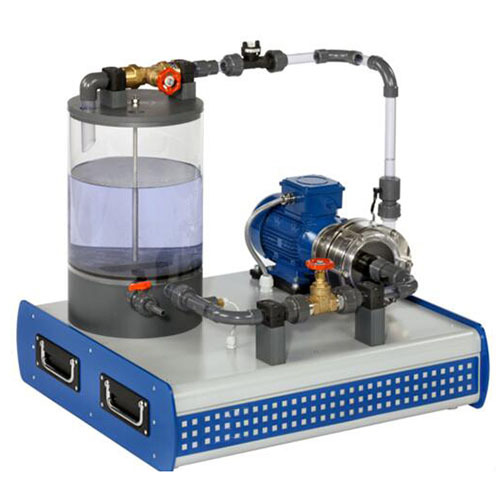

closed water circuit contains centrifugal pump with drive motor and a transparent water tank
transparent housing for observing the pump impeller
variable speed via frequency converter
adjustment of pressure conditions at intake and delivery side by valves
sensors for pressure at intake and delivery side of the pump, temperature and flow rate
microprocessor-based measuring technique
Technical Data
Centrifugal pump with drive motor
- power consumption: 370W
- speed: 0...3000min-1
- max. flow rate: approx. 40L/min
- max. head: approx. 10m
Water tank: approx. 15L
Measuring ranges
- pressure (intake side): -1...1bar
- pressure (delivery side): 0...5bar
- flow rate: 3,5...50L/min
- temperature: 0...130°C
Dimensions and Weight
LxWxH: 660x590x720mm
Weight: approx. 46kg
