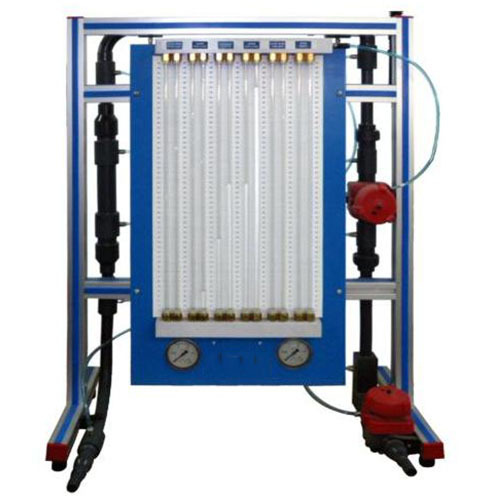

ZM8139 Energy Losses In Bending And Different Fitting Fluids Engineering Training Equipment Teaching Equipment Didactic EquipmentMeasurement device (able to demonstrate losses in bends, enlargement and contraction of pipes and control valves).
1.Technical Specification
Volume of Tank: 5 to 10 liters
Area of the quadrant: 5 x 10-3 m² to 10-2 m²
Immersed height of the quadrant = 100 to 200 mm
Need to have a fulcrum above quadrant with height of about 100 to 200 mm
2.Requirement:
oNeed to be supplied with Hydraulic Bench.
oInstructional manual
oInstallation of all the equipment and Training for 5 personnel.
NB: Specification stated between the interval values and the boundary values are acceptable.
