ZE3154B DC Motor Closed Loop Control Experimental Portable Case School Training Bench Didactic Equipment Electrical Training EquipmentI.Product Overview
1.1 Overview

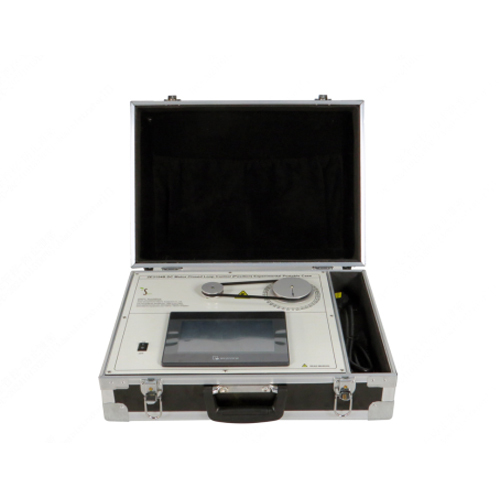

ZE3154B DC motor closed-loop control (position) experimental portable box is a training device for DC servo motor closed-loop speed control (P, I, D). This product adopts an aluminum alloy box structure, high-performance servo motors, sensors and other components, and the experimental box has a reasonable design and novel layout.
1.2 Features
(1) Compact design, easy to carry and move.
(2) Integrated components such as DC motor, encoder, controller, driver and power supply, the experiment can be completed without additional equipment.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: single-phase three-wire AC220V±10%; 50Hz
2.2 Dimensions and Weight
Dimensions: 460mm×330mm×135mm
Weight: ≈20kg
III.Components List and Detailed Introduction
3.1 Product Main Part
|
Number
|
Name
|
Quantity
|
|
1
|
Power switch
|
1
|
|
2
|
Touch screen
|
1
|
|
3
|
Rotary encoder
|
1
|
|
4
|
Stepper motor
|
1
|
IV. Experiment List
Experiment 1 PID Control Stepper Motor Operation Experiment
