Name: Compressor Training System Refrigeration Laboratory Equipment Teaching Equipment Vocational Training Equipment
Brand: SSEDU Vocational Training Equipment
SKU: SS6102C
Availability: InStock
Rating: 5 (1 reviews)

Description

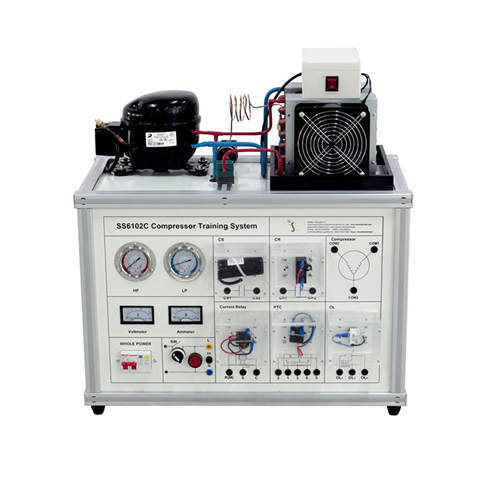

SS6102C Compressor Training System Refrigeration Laboratory Equipment Teaching Equipment Vocational Training Equipment
I.Product Overview
1.1 Overview
A compressor is a driven fluid machine that elevates low-pressure gas to high-pressure gas, and is the heart of the refrigeration system. It inhales low-temperature and low-pressure refrigerant gas from the suction pipe, drives the piston to compress it through the operation of the motor, and discharges high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. In this way, ther efrigeration cycle of compression→condensation (heat release)→expansion→evaporation (heat absorption) is realized. Through relevant experiments, this training device can be familiar with the use of compressors, master its principles and control methods, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skills related to higher vocational schools, junior colleges, secondary vocational schools, and technical schools. Training assessment.
1.2 Features
(1) The compressor training device adopts an aluminum profile frame structure, which is light in weight, firm in structure, and elegant in appearance. All training components are installed on the panel, which is easy to use and not easy to damage.
(2) The training platform has a good safety protection system.
II.Performance Parameter
Input power: AC220V/50Hz
Weight:＜50kg
Working conditions: ambient temperature -10℃～+40℃ relative humidity <85% (25℃)
Dimensions: 670mm×340mm×650mm
Machine capacity: <1KVA

III.Components List and Detailed Introduction
3.1 Main part

Number	Name
1	Piston compressor for refrigerator
2	Waterproof power control box
3	Evaporator
4	Condenser
5	Support frame

3.2 Power box part

Number	Name
1	High pressure gauge
2	Low pressure gauge
3	250V AC pointer voltmeter
4	5A AC ammeter
5	Breaker
6	Red light
7	Rotary Switches
8	5A Fuse
9	Output 220V yellow and blue 4mm terminal
10	Start capacitor
11	Running capacitance
12	Hammer starter
13	PTC launcher
14	Overload protector

3.3 Equipment configuration list

Number	Name	Quantity
Component 1	High pressure gauge	1
Component 2	Low pressure gauge	1
Component 3	250V AC pointer voltmeter	1
Component 4	5A AC ammeter	1
Component 5	Breaker	1
Component 6	Red light	1
Component 7	Rotary Switches	1
Component 8	5A Fuse	1
Component 9	4mm terminal	2
Component 10	Start capacitor	1
Component 11	Running capacitance	1
Component 12	Hammer starter	1
Component 13	PTC launcher	1
Component 14	Overload protector	1
Component 15	Frame	1
Component 16	Piston compressor for refrigerator	1
Component 17	Waterproof power control box	1
Component 18	Evaporator	1
Component 19	Condenser	1

3.4 Accessories

Number	Name	Quantity
1	Yellow double-ended 1m 4mm safety electrical cable	1
2	Black double-ended 0.5m 4mm safety electrical cable	10
3	Blue double-ended 1m 4mm safety electrical cable	1
4	European power cord	1

IV.Experiment List
Experiment 1 Compressor winding measurement experiment
Experiment 2 Starting mode of heavy hammer starter, compressor operation experiment
Experiment 3 Hammer starter, capacitor starting mode, compressor operation experiment
Experiment 4 Hammer starter, capacitor start-capacitor operation mode, compressor operation experiment
Experiment 5 PTC thermistor start mode, compressor operation experiment
Experiment 6 PTC thermistor, capacitor start mode, compressor operation experiment
Experiment 7 PTC thermistor, capacitor start-capacitor operation mode, compressor operation experiment
