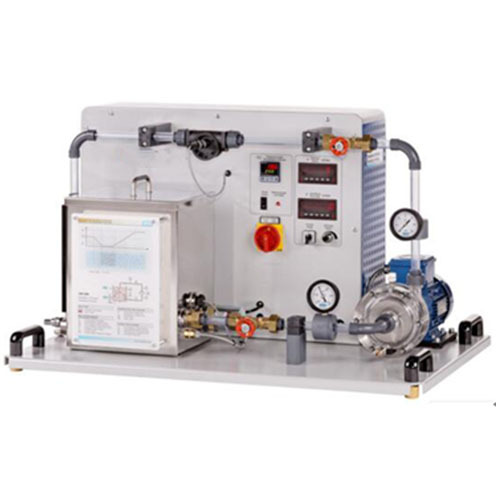

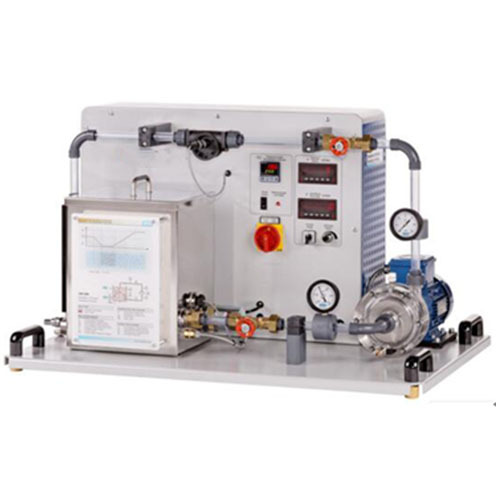

ZM7149 Cavitation in Pumps Fluids Engineering Training Equipment Teaching Equipment Didactic Equipmentvisualisation of cavitation in centrifugal pumps
transparent pump housing and intake pipe
open impeller to observe the blades during operation
continuously adjustable pump speed via frequency converter
temperature control via heater and external cooling via water supply
flow measurement using rotameter
display of the pressures on the intake and delivery side via manometers
digital display of speed, water temperature in the return and flow rate
closed water circuit with tank and temperature display
Technical Data
Centrifugal pump with drive motor
- power consumption: 0,37kW
- speed: 500...3300min-1
- max. flow rate: 70L/min
- max. head: 13m
Tank: 20L
Measuring ranges
- pressure (intake side): -1...0bar
- pressure (delivery side): 0...1,5bar
- temperature: 0...100°C
- flow rate: 10...140L/min
Dimensions and Weight
LxWxH: 1000x630x590mm
Weight: approx. 65kg
